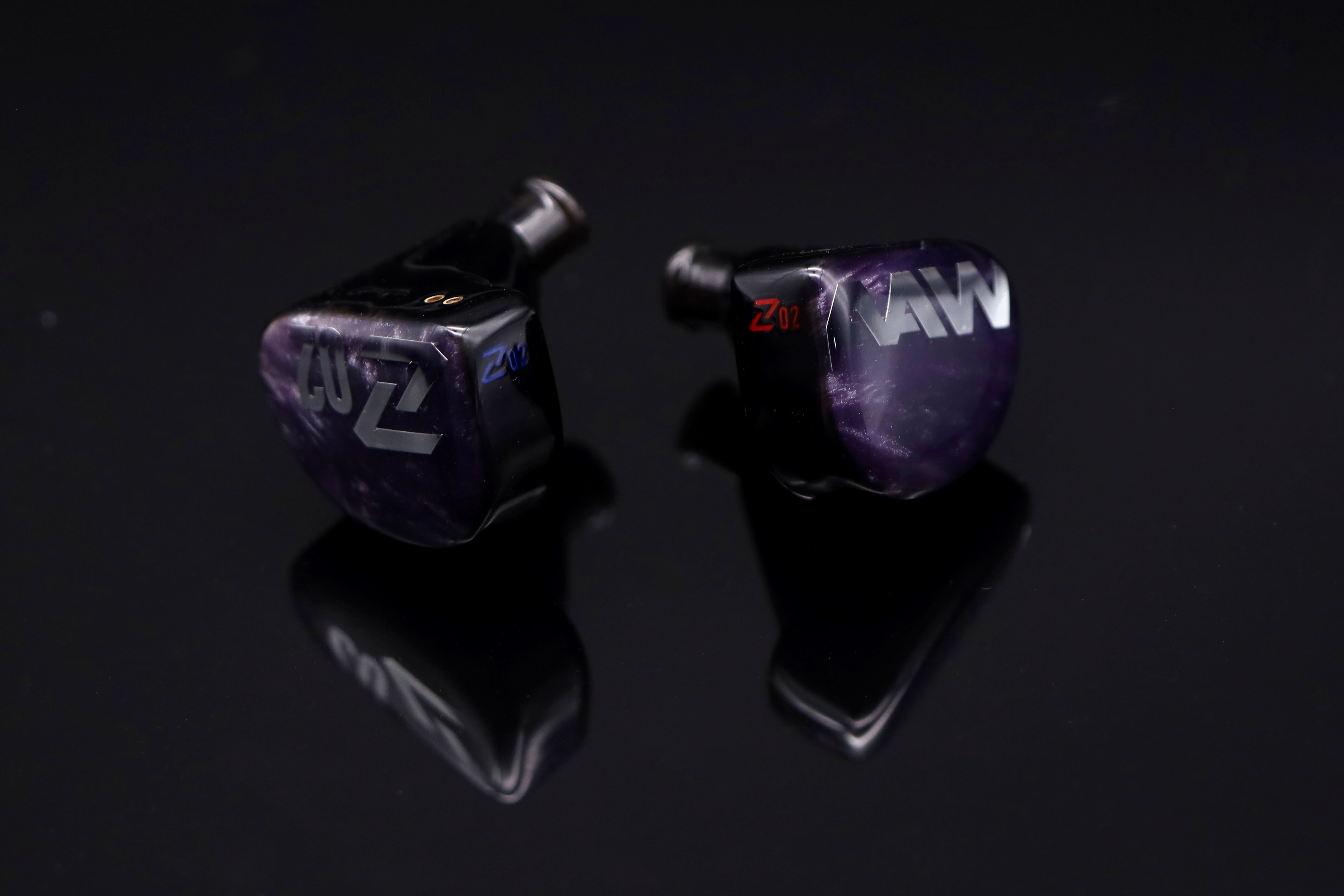

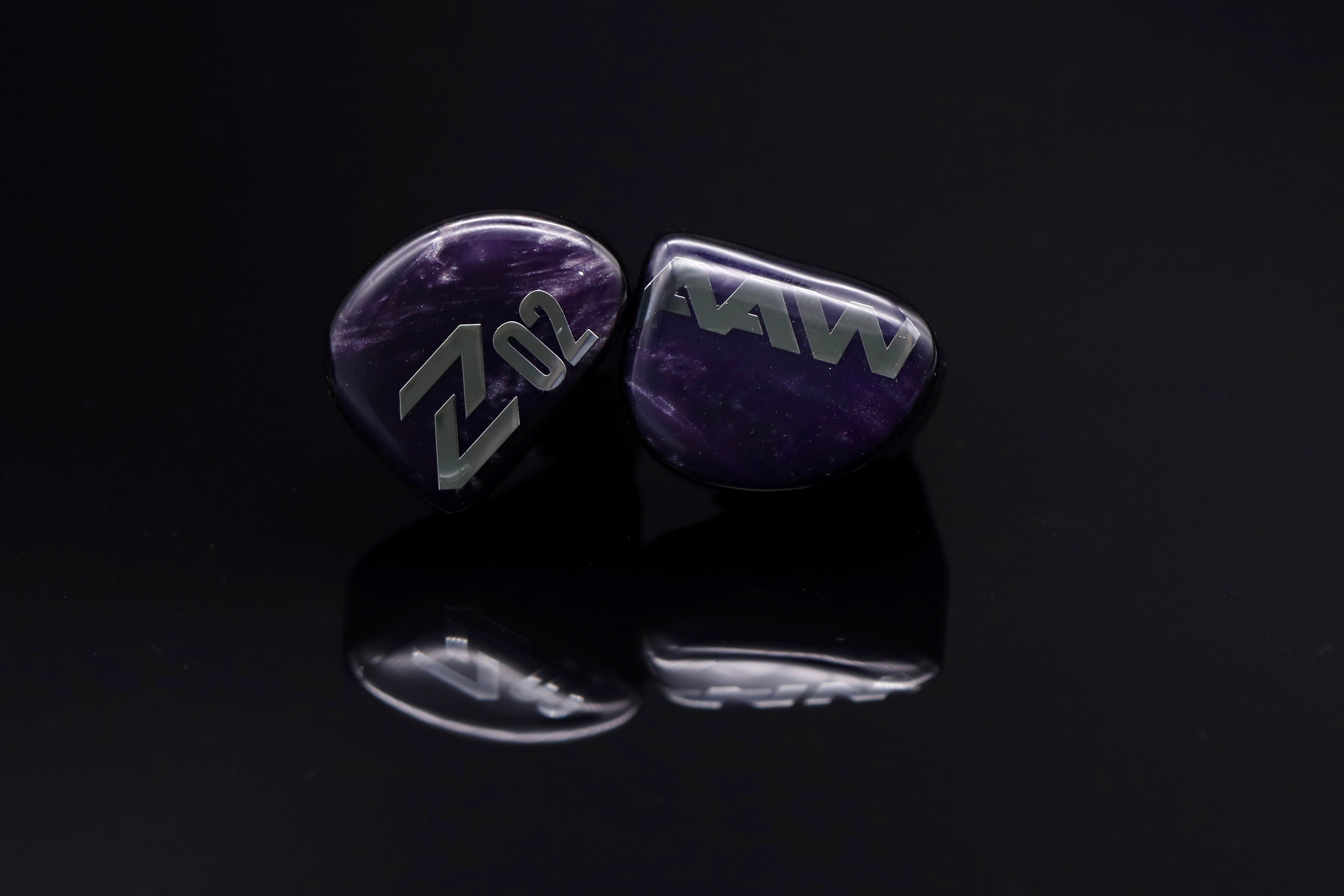

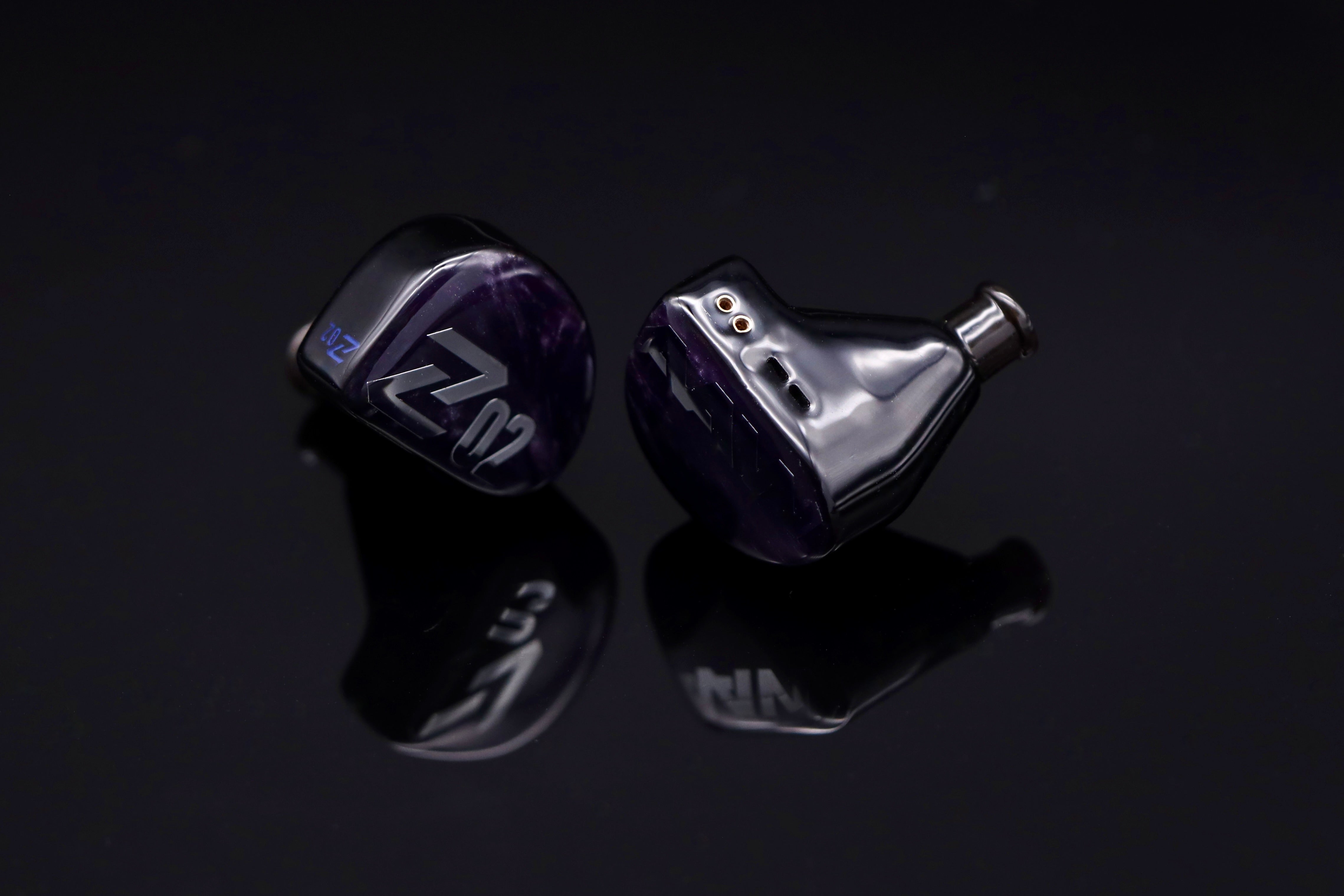

AAW Z02 Universal In-Ear Monitor
The Z02 showcases an innovative dynamic-planar hybrid
multi-driver system, meticulously tuned for a modern and lively sound
signature. It delivers a natural and robust sub-bass response, unmatched by
traditional all-balanced armature setups. Its state-of-the-art miniature planar
magnetic tweeter ensures crystal-clear detail in the vocal and treble ranges,
with a carefully managed treble extension that guarantees a smooth and
fatigue-free listening experience.
Stocks arriving 10th Jan 2024
Comes in 4.4mm Balanced only.
不含税。 结账时计算运费
可在 Jaben @ The Adelphi 取货
通常在 24 小时内就绪
AAW Z02 Universal In-Ear Monitor
4.4mm Balanced
Jaben @ The Adelphi
1 Coleman St, #01-25
The Adelphi
Singapore 179803
新加坡
The Z02 showcases an innovative dynamic-planar hybrid
multi-driver system, meticulously tuned for a modern and lively sound
signature. It delivers a natural and robust sub-bass response, unmatched by
traditional all-balanced armature setups. Its state-of-the-art miniature planar
magnetic tweeter ensures crystal-clear detail in the vocal and treble ranges,
with a carefully managed treble extension that guarantees a smooth and
fatigue-free listening experience.
Miniature
Planar Magnetic Tweeter
In this hybrid structure, we choose to use a specially designed miniature
planar magnetic tweeter embedded
deep into the Z02's 3d printed
shell. The cavity design
catered for the planar drive eliminates sound pressure decay and any unwanted resonance in a
typical tubed balanced armature design.
The planar tweeter also brings several benefits to this brand-new hybrid
architecture:
1.
Enhanced High-Frequency Performance
2.
Low Distortion
3.
Compact Size
4.
Fast Transient Response
5.
Wide Dispersion
6.
Durability and Stability
7.
Synergy in Multi-Driver Systems
10mm
Graphene Dynamic Driver
The newly designed dynamic driver features an ultra-thin,
rigid film diaphragm crafted from graphene material. Paired with a
physical low-pass filter, it operates within a minimal overlapping frequency
range, complementing the planar tweeter. With a meticulously arranged driver
positioning and an advanced 3D-printed acoustic chamber design, AAW achieves
enhanced coherence, reduces phase shift, and optimizes the timing of audio
signal delivery for a more precise and immersive listening experience.
3D
Printed Enclosure and Precision Engineering
With a wholly digitized design process, A2H+ employs AAW 2nd
generation digital enclosure and acoustic chamber design. Driver and nozzle
placements are simulated hundreds of iterations to determine the ideal phasing
and response. It is then 3D printed to precision to maintain consistency in
mass production.
Suitable for rising artists, band performances, streaming platform,
worship events, audio engineering and anybody who appreciates critical
listening experience.
Specifications
Accessories
and Warranty
1. Enhanced High-Frequency Performance
• Precision and Detail: Planar magnetic drivers excel in delivering highly detailed and accurate high frequencies. Their flat diaphragm design minimizes distortion and ensures a clean and smooth treble response.
• Extended High-Frequency Range: Capable of producing ultra-high frequencies with precision, suitable for reproducing nuanced audio details.
2. Low Distortion
• Uniform Motion: The diaphragm in planar magnetic tweeters moves uniformly due to the evenly distributed magnetic field, reducing non-linear distortions compared to traditional tweeters.
• Minimal Resonance: They often have less resonance or harshness at high frequencies, contributing to a more natural sound.
3. Compact Size
• Miniaturization makes these tweeters ideal for small audio devices like IEMs or portable speakers without sacrificing performance.
4. Fast Transient Response
• Accurate Dynamics: The thin diaphragm responds quickly to audio signals, making them excellent for handling transient sounds and dynamic changes, enhancing realism.
5. Wide Dispersion
• Consistent Soundstage: Planar magnetic tweeters typically provide a wide and uniform sound dispersion, improving the listening experience across different angles.
6. Durability and Stability
• Robust Design: The thin yet strong diaphragm material ensures long-term stability and resistance to environmental changes, like humidity and temperature fluctuations.
7. Synergy in Multi-Driver Systems
• In multi-driver configurations (like hybrid IEMs), miniature planar tweeters can complement dynamic or balanced armature drivers by focusing on delivering high frequencies, creating a well-balanced sound profile.
Specifications
● 10mm Graphene Dynamic Driver + 1 x Miniature Planar Magnetic Tweeter
● Physical Crossover
● Sensitivity: 105dB SPL@1Khz
● THD<=1% @1mW@1Khz
● Impedance: 18ohm@1Khz
● Freq. Response: 10Hz~40Khz
● 3D Printed Enclosure
Accessories and Warranty
● 48" Brevity OCC Copper Detachable Cable
● AAW Carrying Case
● Assorted Ear Tips
● 1 Year Limited Warranty
- Authorised Distributor Warranty - 1 Year
