Shanling UA6
Shanling UA6 is the latest flagship portable USB DAC/AMP from the house of Shanling. Featuring a quad-DAC architecture, the UA6 promises true high-resolution audio signal processing supporting up to 32-Bit/768kHz and native DSD512 audio signals. It benefits from Shanling’s in-house developed hybrid power supply system with a built-in 220mAh battery. With its professionally designed audio circuitry, Shanling UA6 offers excellent sound with high SNR, DNR performance and ultra-low distortion characteristics in the output signal. Shanling utilises its four DAC configuration and delivers an impressive sound experience for its users. Elevate your portable audio listening sessions with the all-new Shanling UA6!!
Unit comes with a leathercase
税抜き価格 配送料は購入手続き時に計算されます。
現在Jaben @ The Adelphiでピックアップは利用できません
Shanling UA6
Black
Jaben @ The Adelphi
1 Coleman St, #01-25
The Adelphi
Singapore 179803
シンガポール
Magical Quad-DAC Architecture:-
Shanling UA6 brings you a well-implemented quad-DAC architecture housing four CS43131 DAC chips. It has a complex and advanced audio circuitry that offers high-end sonic excellence to the users. With a high-performance USB bridge, the UA6 supports decoding and processing of high-resolution 32-Bit/768kHz PCM and native DSD256 audio signals. Users can switch between dual DAC or Quad DAC operation mode. Are you ready to experience true high-fidelity audio processing with your smartphone?? Shanling UA6 is here for you!!
Hybrid Intelligent Battery Mode:-
Shanling UA6 houses a 220mAh battery that comes into action whenever required. Shanling has designed Hybrid Power Supply System 2.0 for the UA6. With low power output devices such as iPhones, the UA6 manages the power requirements through the built-in battery enabling cleaner and proper high-resolution audio signal processing. The intelligent battery management also ensures cleaner output with ultra-low background noise even with sensitive IEMs.
3.5mm+4.4mm Dual Headphone Ports:-
You can pair your single-ended as well as balanced terminated IEMs and headphones with the UA6 as it features 3.5mm single-ended and 4.4mm balanced output ports. In today’s time, we see most of the IEMs and Headphones coming in at 3.5mm or 4.4mm termination, so the UA6 supports them straight out of the box without any need for extra adapters or connectors.
Perfect for Both High-Sensitivity and Low-Sensitivity IEMs/Headphones:-
Shanling UA6 is a perfect companion for your IEMs and Headphones. With its dual-level gain modes and strong amplification from both 3.5mm and 4.4mm ports, the UA6 works well with both high-sensitivity and low-sensitivity IEMs and headphones. The UA6 has a maximum output power rating of 361mW, it is more than adequate enough for most IEMs out there.
Built-in Five Digital Filters and Application Integration:-
Shanling UA6 packs five digital filters that audiophiles can play around with and get their preferred output presentation. It integrates well with Shanling Eddict player application that enables precise volume adjustment, channel balance settings, DAC operation mode switching, etc. Basically, unleash the true potential of your Shanling UA6 with the Eddict Player application.
Superb Build Quality:-

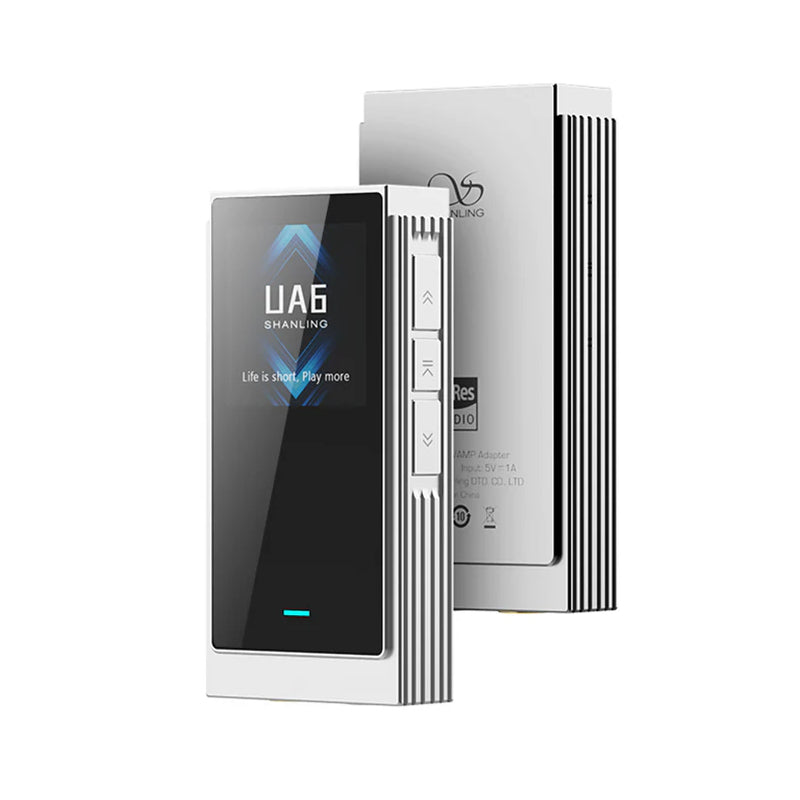

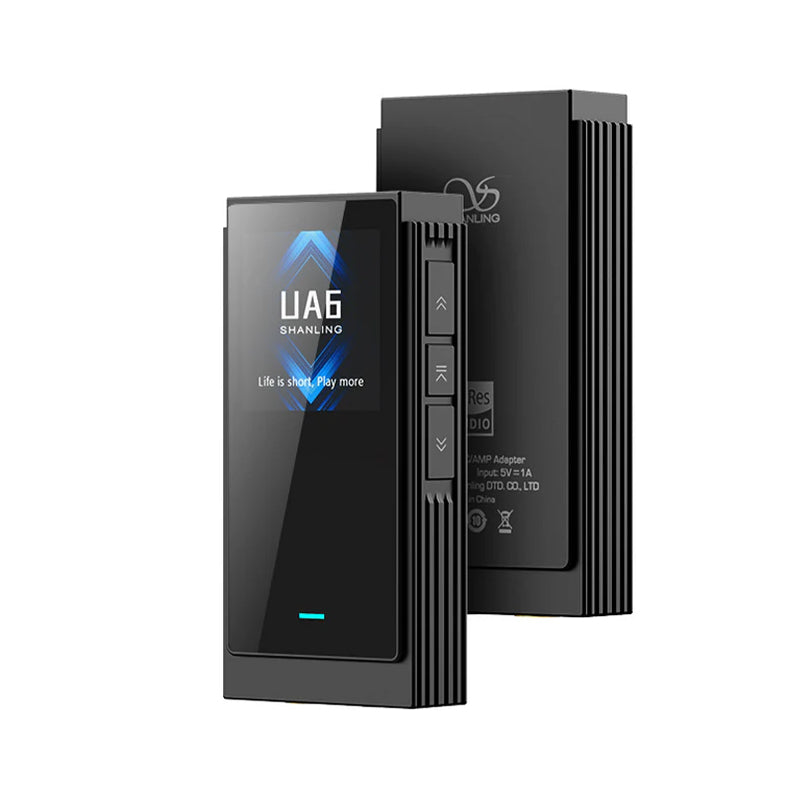

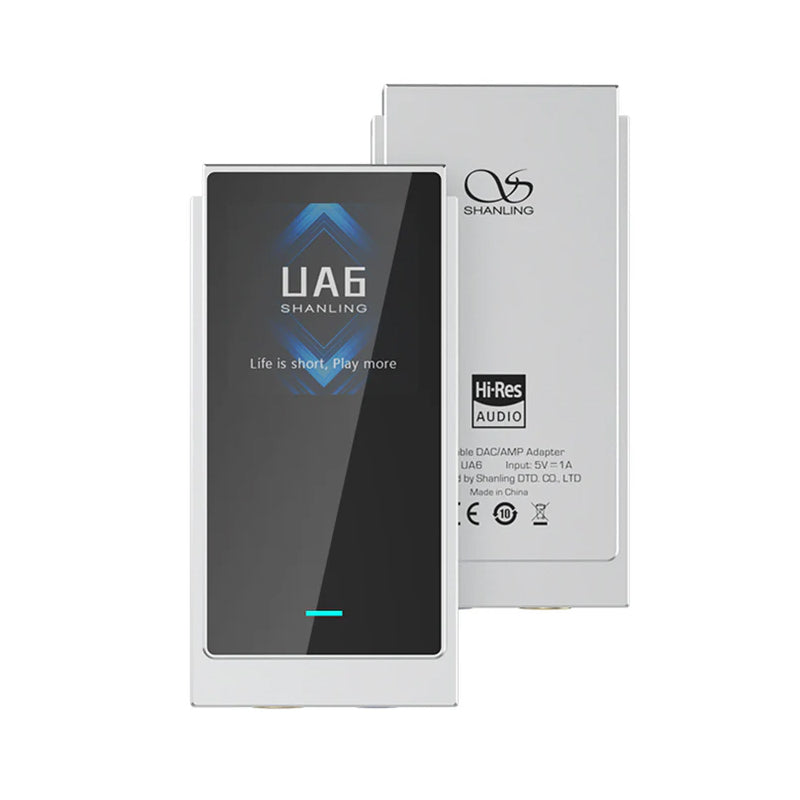

Shanling UA6 has got a premium look and exquisite feel. The device is made up of metallic alloy chassis with a 1.3” colorful display screen, LED indicator, and physical keys. The screen shows various settings such as active bitrate, gain mode, etc. The LED indicator here glows in different colors based on the active file bitrate.
- High-Performance Portable DAC/AMP.
- Quad-DAC Architecture with Four CS43131 DAC Chips.
- Dual-DAC/Quad-DAC Switching.
- Supports High-Res 32-Bit/768kHz PCM and Native DSD512 Audio Signals.
- Hybrid Power Supply System 2.0 with Built-in 220mAh Battery.
- Pure Sound Delivery with Ultra-Low Background Noise.
- UAC2.0 and UAC1.0 Dual Operating Modes.
- Shanling Eddict Player Application Integration.
- High SNR and DNR Performance(Up to 132dB SNR and 133dB DNR).
- 3.5mm+4.4mm Dual Headphone Output Ports.
- Low/High Dual Gain Modes.
- Maximum Output Port: 361mW@32Ω.
- Built-in Five Digital Filters.
Technical Details
- Weight: About 35g
- Size: 68 x 33.5 x 13.6 mm
- Supported Specifications: 768kHz/32bit and DSD512
- Gain Compensation: High, Low
- DAC Converter Chip: CS43131 × 4
- Digital Filter: 5 different filtering methods
- Battery Capacity: 220mAh
- 3.5mm PO Output:
Output Power: Low Gain: 1V @ 32Ω (31mW @ 32Ω);
High Gain: 1.9V @ 32Ω (112mW @ 32Ω)
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.00025% @ 32Ω (A-Weighted @ 1.8V High Gain)
Dynamic Range: 128dB @ 32Ω (A-Weighted High Gain)
Channel Separation: 68dB @ 32Ω (A-Weighted High Gain)
Signal-to-Noise Ratio: 127dB @ 32Ω (A-Weighted High Gain)
Noise: 122dB @ 32Ω (A-Weighted High Gain)
Impedance: <0.6Ω - 4.4mm Balanced Output
Output Power:
Low Gain: 1.8V @ 32Ω (101mW @ 32Ω);
High Gain: 3.4V @ 32Ω (361mW @ 32Ω)
Frequency Response: 20Hz-40kHz (-0.5dB)
THD+N: 0.0006% @ 32Ω (A-Weighted @ 2V High Gain)
Dynamic Range: 133dB @ 32Ω (A-Weighted High Gain)
Channel Separation: 129dB @ 32Ω (A-Weighted High Gain)
Signal-to-Noise Ratio: 132dB @ 32Ω (A-Weighted High Gain)
Noise: 121dB @ 32Ω (A-Weighted High Gain)
Impedance: <1.2Ω - Inside the Box
1 x Shanling UA6
User Manual
- Shanling UA6
- Type-C to Type-C cable
- Instruction Manual
- Authorised Distributor Warranty - 1 Year
