Shanling EA5 - オールインワンミュージックセンター

All-in-One Desktop Streamer.

Premium AKM AK4493EQ DAC Chipset.

CPAF Low-Pass Filtering.

Supports High-Resolution Audio Signal Decoding.

PCM Up to 32-Bit/768kHz.

DSD Up to DSD512.

8x MQA Compatible.

Closed Android Operating System.

AGLO Technology(Android Global Lossless).

Independent Power Supply Design.

2.4GHz & 5GHz Dual-Band Wi-Fi Connectivity.

6.35mm Headphone Output.

Dedicated Headphone Amplifier with OP+BUF Chipset.

Powerful Speaker Output(2x100W@4Ω).

Strong Headphone Output(570mW@32Ω).

KDS Crystal Oscillators & 3rd Generation FPGA Chipset.

Supports Famous Streaming Services(Apple Music, Spotify, Tidal, Deeper, Qobuz, Amazon Music).

Rich & Elegant Design.

4.7” Touch Screen Display.

Two-Way Hi-Res Bluetooth Connectivity.

DLNA Certified, NAS Support, Apple Airplay Support.

Companion Application Remote Control.

Hi-Res Audio & Hi-Res Audio Wireless Certified.

System: Closed Customized Android, with build-in streaming apps

Display: Touch 4.7-inch 720p

Dimensions: 238 x 188 x 55 mm

Analog circuit:

AKM AK4493 DACTPA6120A2 for headphones

Abletec ALC0100 Class-D for speakers

3rd Generation FPGACPAF Filter technology

KDS Crystal oscillator

Panasonic Tantalum capacitors

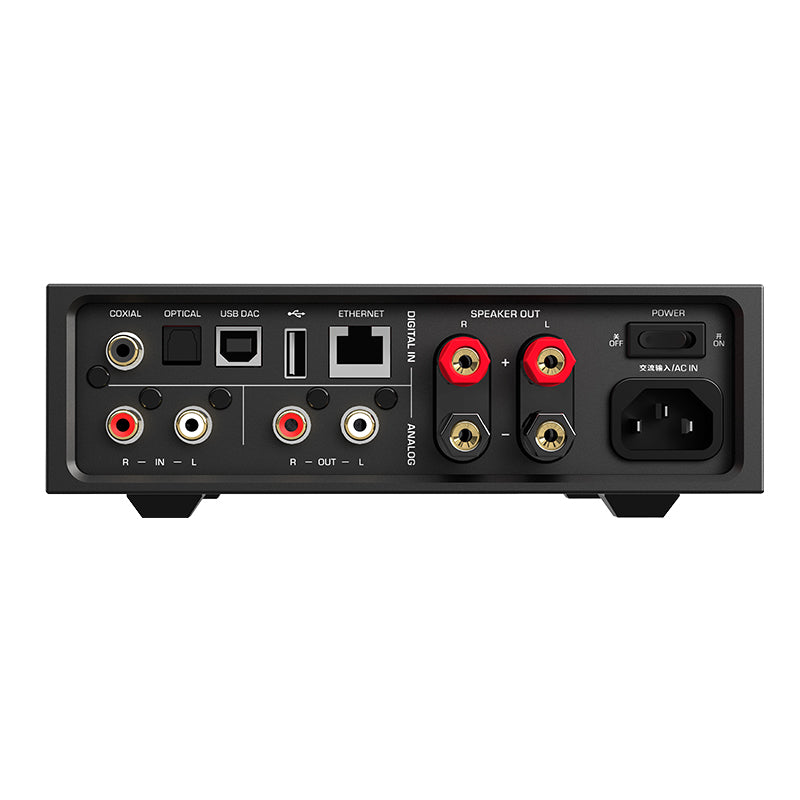

Outputs: 6.35mm single ended for headphones and standard speaker port

Pre-amp output: RCA

Digital input: USB, Coaxial, optical, LAN and external driver USB slot

Analog Input: RCA

Output power:

Headphones 6.35mm 570mW @ 32Ohm

Speakers 50W @ 4Ohm / 32W @ 8Ohm per channel

Wireless connection:Wifi 2.4 & 5GSupport DLNA and AirplayTwo-way Bluetooth 4.2, with LDAC support Audio support:PCM 32/768DSD256 native, DSD512 software8x MQAShanling EA5 x 1
Power Supply x 1
Instruction Manual x 1
